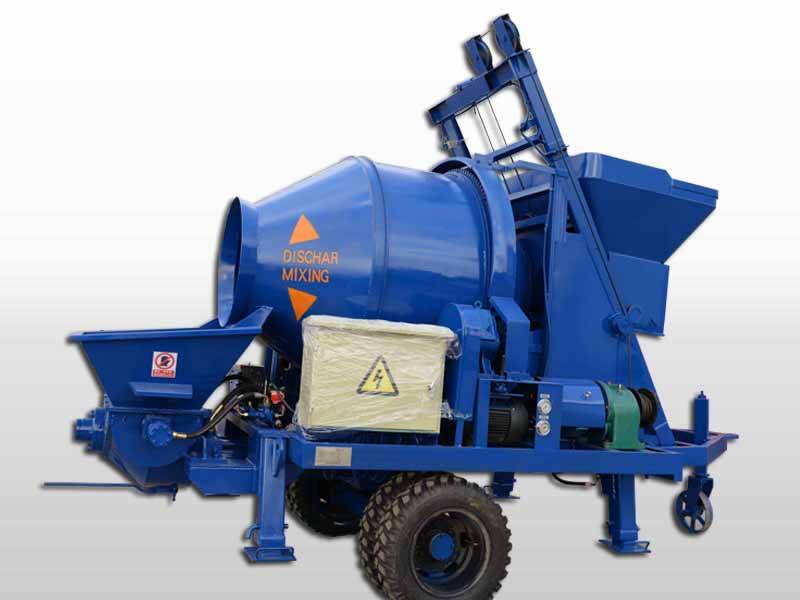

JBT40 P2 Electric concrete mixer pump

Max. theo. concrete output :
40m3/h
Max.concrete pumping pressure:
10MPa
Concrete cylinder diameter×stroke:
Ф180×1100mm
Hopper capacity:
550L
Outlet diameter:
Ф150mm
Electrical engineering power:
45KW
We're here to help:
Easy ways to get the answers you need.
download: Catalogue
Description
Application
Features
Technical data
■ Description
Electric concrete mixer pump is combined by the traditional concrete pump and the mixer together. JBT40 P2 electric power concrete pump with mixer achieves full automatic during concrete construction process.
The electric power concrete pump with mixer combines the concrete mixer and the concrete pump to realize the integration of the pumping station. It is used for houses and commercial buildings under 10 storeys, small bridges, water, electricity and communications, which are scattered and require on-site mixing. The overall layout is more scientific and the power type is more advanced, including hydraulic, electric, and oil pumps. With fast and flexible, easy to move, fast, labor-saving and other advantages.
■ Application
1. Electric concrete mixer pump can convey floor heating lightweight foamed cement, mortar, fine aggregate concrete.
2. Electric concrete pump can convey greening soil in ecological environment construction.
3. Electric concrete mixer can convey all kinds of engineering construction in the plain concrete, fiber concrete.
4. Electric power concrete pump is most suitable for four to six floor buildings, especially in the group buildings, bridges and the small construction sites where need the concrete mixer at the scene.
■ Features
Features of electric concrete pump:
1. Double open hydraulic loops (pumping hydraulic circuit is independent of distributing hydraulic circuit) with two pumps, makes the whole hydraulic system much simpler. The reliability of the whole system is also much higher as well as the components’ life is prolonged greatly. This is convenient for judgeing and removing trouble.
1. Compact structure, flexible movement, easy operation and simple maintenance.
2. Electric concrete mixer pump with large valve changing direction, makes the main pumping loop quick response, small leakage, good stability, high reliability and high resist contaminative capability.
3. Electric power concrete pump with remote control with high automatic degree and easy operation, saving labor cost.
4. Electric power concrete pump with mixer is equipped with wired remote controller, easy to operate.
5. Hydraulic system has safe relief protection, at the same time, when the system pressure is over, the main oil pump cutting device makes itself be protected reliably.
6. Distributing hydraulic circuit adopts constant pressure pump, which can provide strong distributing pressure and economic energy control.
7. Cone sealing of all pipes make the pipe joints seal reliably.
8. Independent mixing system with even mixing performance and high working efficiency.
9. The high-low pressure switch adopting cartridge valve of reduces the trouble of dismantling and installing the oil pipe.
10. Electric concrete pump adopts emulsification technology of initiative and passivity recovery integration.
11. Centralized lubrication system, low consumption of equipment parts, less maintenance cost.
■ Technical data
Items Units Parameters
JBT40 P2 electric concrete mixer with pump















Whole performance of machine



Max. theo. concrete output m3/h 40
Stir the maximum rated feed L 500
Stir the maximum rated discharge L 450
Max. concrete pumping pressure MPa 10
Distribution valve type
S Valve
Concrete cylinder diameter×stroke mm Ф140×1000
Hopper capacity L 550
Outlet diameter mm Ф150













Power system




Winding motor power kw  5.5
Stir the motorPower kw 4.5
Water pump motor power kw 0.55

Electrical engineering power

kw 45
Rotate speed r/min 1480




 Hydraulic system
Circuit type
Open circuit
Pumping system pressure MPa 28
Mixing system pressure MPa 6-8
Capacity of oil tank L 370

The biggest transportation is away from vertically (/Level)

m  120/500






Other parameters


Max. aggregate diameter mm Scree: 40 50
Inside diameter of delivering pipe mm Ф125
Dimensionslength×width×height mm 4200x2300x3150
Total weight kg 4500
